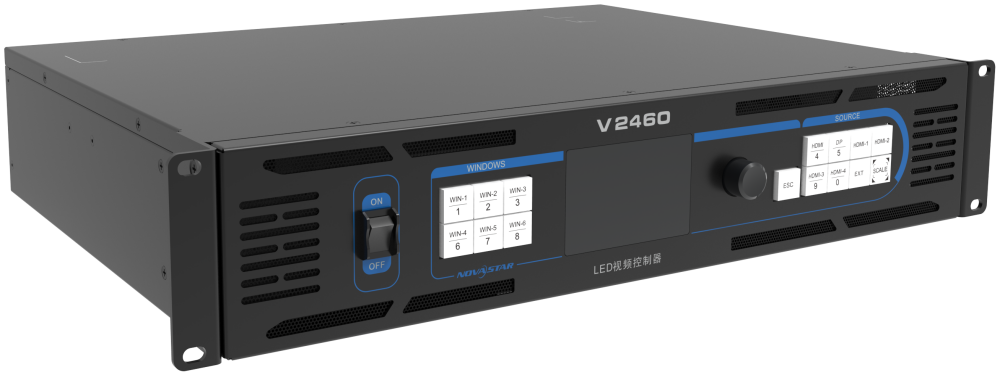

V2460 2-in-1 video controller
1560W point super large load capacity, new 24 network ports
24-channel Gigabit network port output, large load capacity

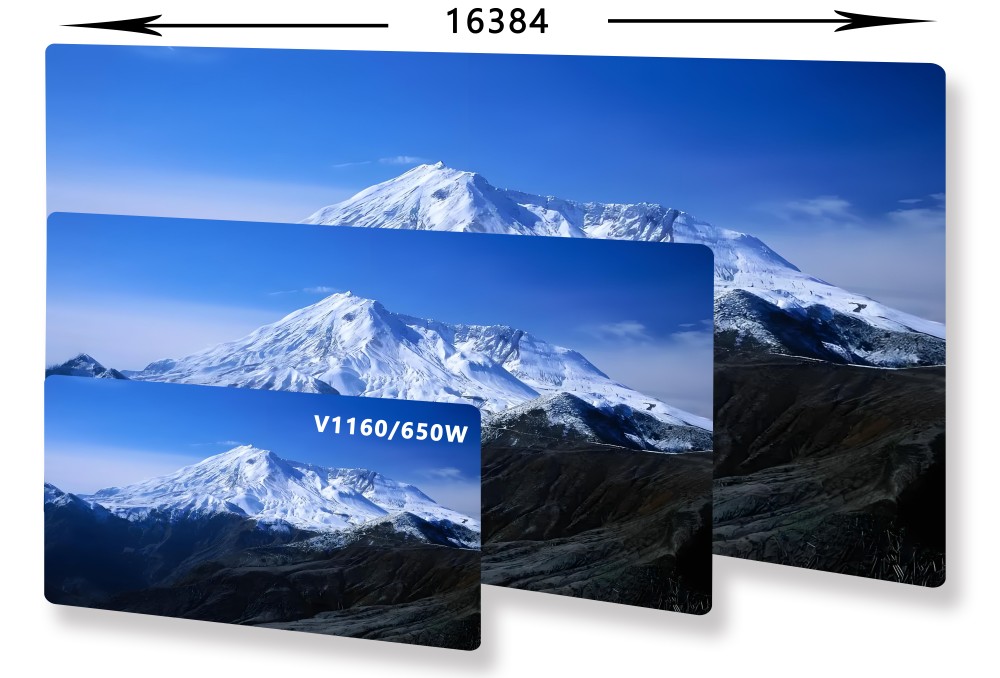

The output load of V2460 is up to 1560W, and the screen width is up to 16384 and the maximum is 8192
Big event or small event? There is always something to choose from in the V series!

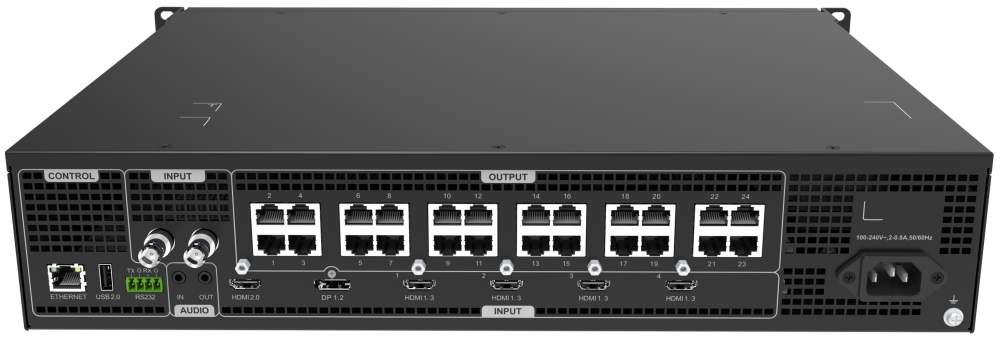

Rich input/output, audio/video interfaces
2U body, more rich interface specifications
Each product strives to provide you with the most applicable and competitive input/output interface types today.

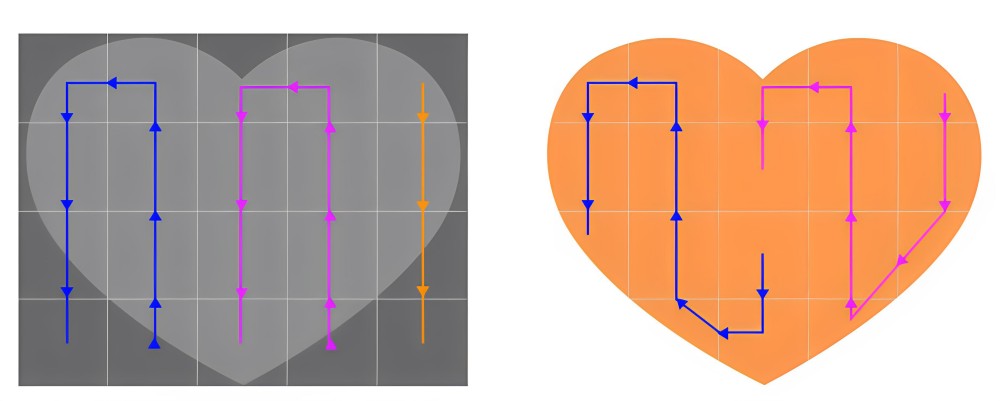

Arbitrary routing, breaking traditional rules
Improve network port load utilization, reduce equipment performance waste, and constantly evolve to stay ahead of the curve.
6 layers + BKG + OSD, flexible screen layout
6 layers can be adjusted at will and switched freely
The window specifications have been upgraded, and background subtitles are available, suitable for any scene.
Product Function Comparison
| Model | V2460 | V1260n | V1160 | V1060n | V960 | V760 |
| Load Capacity | 15.6 million | 10.4 million | 6.5 million | 3.9 million | 2.6 million | 1.3 million |
| Width and Height Limit | The widest is 16384 and the highest is 8192 | The widest is 16384 and the highest is 8192 | The widest is 10240 and the highest is 8192 | The widest is 10240 and the highest is 8192 | Maximum width 3840 and maximum 1920 | Maximum width 3840 and maximum 1920 |
| Input Interface | HDMI 2.0×1 DP 1.2×1 HDMI 1.3×4 3G-SDI(IN+LOOP)x1(optional) AUDIOx1 | DP1.2×1 HDMI2.0x1 HDMI1.3×4 3G-SDl optional (in+loop)x1 Audiox1 | HDMI 1.4×2 DVI(HDM 1.4)x1 3G-SDI(IN+LOOP)x1(optional) AUDIOx1 | HDMI 1.3×2 DVIx1 AUDIOx1 3G-SDI(IN+LOOP)x1(optional) | DVI-Dx1 HDMI 1.3×1 VGAx1 CVBSx1 USB (Type A) x1 AUDIOx1 | DV-Dx1 HDMIx1 VGAx1 CVBSx1 USB (Type A) x1 AUDIOx1 |
| Output Interface | Network port x24 AUDIOx1 | Network port x16 Audiox1 | Network port x10 HDMI 1.3×1 (monitoring/video output) AUDIOx1 | Network port x6 HDMI1.3×1 (monitoring/video output) AUDIOx1 | Network port x4 AUDIOx1 | Network port x2 AUDIOx1 |
| Number of Layers | 6+BKG+OSD | 6+1 channels OSD+1 channel BKG | 3+OSD | 3+OSD | 1 | 1 |
| Number of Scenes | 10 | 10 | 10 | 10 | 6 | 6 |
| Knob Brightness Adjustment | √ | √ | √ | √ | √ | √ |
| Onboard U disk playback | × | × | × | × | √ | √ |
| Control method | TCP/IP | TCP/IP | USB,TCP/IP | USB,TCP/IP | USB | USB |
| Central control docking | RS232, TCP/IP | TCP/IP, RS232 | TCP/IP | TCP/IP | RS232 | RS232 |
