Indoor
Refresh rate
Grayscale display
Wide viewing angle
The screen does not freeze
Bold frame
Rich colors
Various interfaces
Various interfaces
More than 100,000 hours
Longevity! That’s the last word
High-quality original components and C chips, the unit board has multiple chip protection functions
High-efficiency signal processing and low-power consumption unit board have a service life of more than 100,000 hours.
The dead light rate is less than or equal to 0.0002. The factory value is 0
Various Installation Methods
Meet customers’ different customization needs

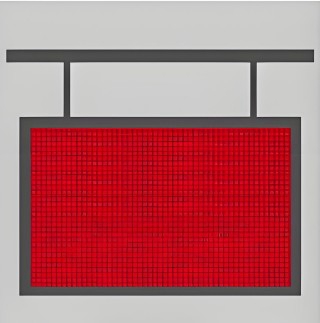

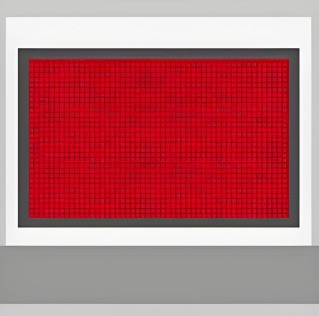

Hanging

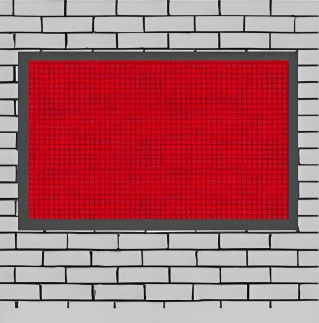

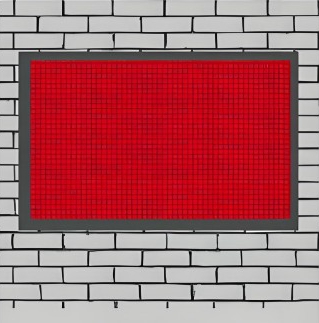

Wall Mounted
Wall Mounted
Hanging

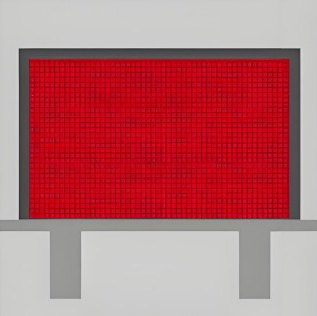

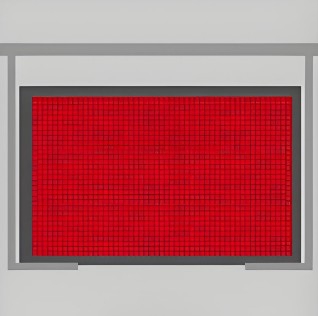

Bottom Bracket Type
Floor-standing
Product Accessories

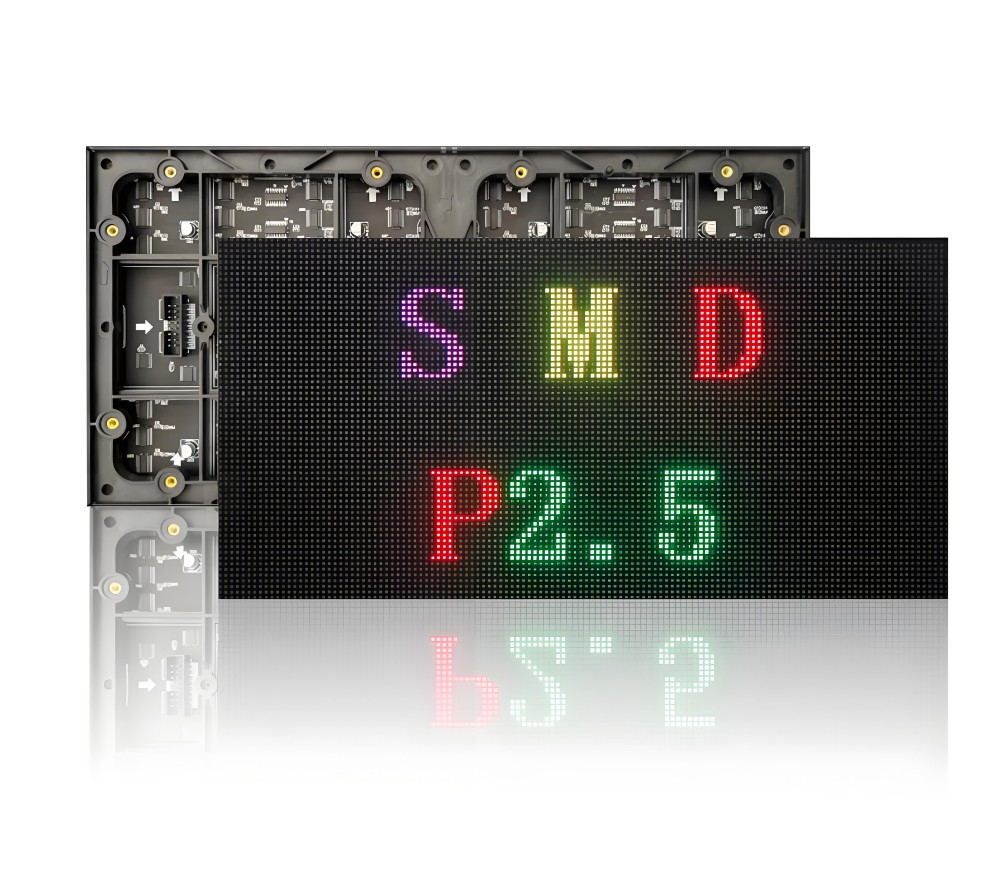

Unit
Plate Magnetic Beads
Network Cable/Power cable/Signal Cable
Multi-function Card/Receiving Card
Full Color Sending Card/Transmission Line
Power Supply

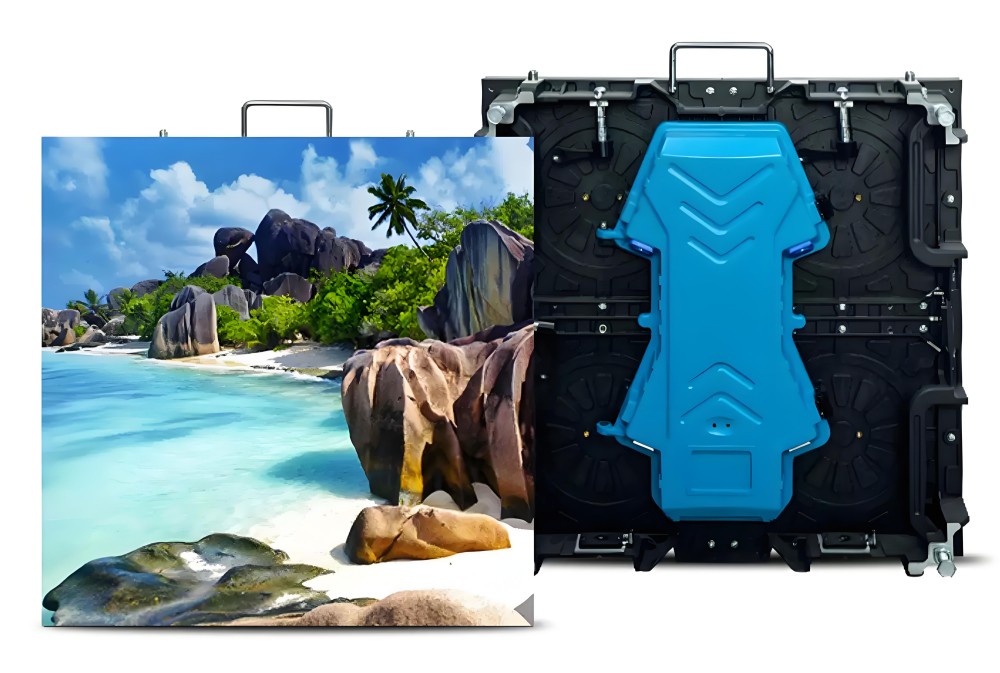

Die-cast Aluminum Box-front
Die-cast Aluminum Box-inner Lining
Die-cast Aluminum Cabinet-back

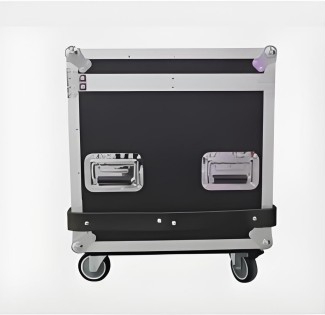

Aviation-Side

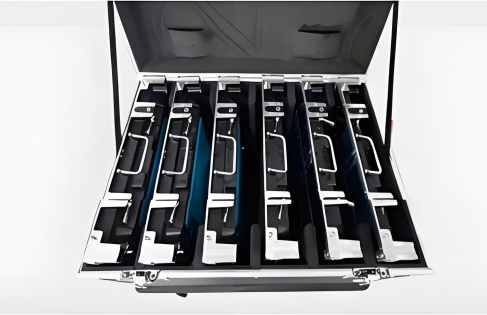

Aviation Box-interior
Product Parameters
| Pixel Spacing | 2.0mm | 2.5mm | 3.0mm | 4.0mm |
| Resolution | 160×80=12800 Dots | 128×64=8192 Dots | 64×64=4096 Dots | 64×64=4096 Dots |
| Density Per Square | 250000Dots/㎡ | 160000Dots/㎡ | 111111Dots/㎡ | 62500Dots/㎡ |
| Dimensions (length*width*thickness) | 320*160*15.0 (mm) | 320*160*14.0 (mm) | 192*192*12.2 (mm) | 256*256*13.5 (mm) |
| Weight | 385g | 344g | 274g | 460g |
| Power | <26W | <25W | <20W | <17.5W |
| Maximum Current | <5.2A | <4.5A | <4A | <3.5A |
| Maximum Power Consumption | <490 W/㎡ | <500 W/㎡ | <540 W/㎡ | <260 W/㎡ |
| Average Power Consumption | 250-290W/㎡ | 200-250W/㎡ | 280-330W/㎡ | 150-170W/㎡ |
| Best Viewing Distance | ≥2.0m | ≥2.5m | ≥3.0m | ≥4m |
| Brightness | ≥600cd/㎡ | ≥800cd/㎡ | ≥800cd/㎡ | ≥700cd/㎡ |
| Blind Spot Rate | Less than three ten thousandths | Less than three ten thousandths | Less than three ten thousandths | Less than three ten thousandths |
| Horizontal Viewing Angle | 175 degrees | 175 degrees | 140±10 degrees | 120±10 degrees |
| Vertical Viewing Angle | 175 degrees | 175 degrees | 140±10 degrees | 120±10 degrees |
| Color Temperature | 2000K-10000K adjustable | 2000K-10000K adjustable | 2000K-10000K adjustable | 2000K-10000K adjustable |
| Grayscale | 14-16Bit (optional) | 14-16Bit (optional) | 14bit | 14bit |
| Structural Features | Light driver in one | Light driver in one | Light driver in one | Light driver in one |
| Drive Mode | 1/40 sweep constant current drive | 1/32 sweep constant current drive | 1/32 sweep constant current drive | : 1/32 sweep constant current drive |
| Kit Materials | Polycarbonate PC material | Polycarbonate PC material | Polycarbonate PC material | Polycarbonate PC material |
| Frame Change Frequency | >60 frames/second | >60 frames/second | >60 frames/second | >60 frames/second |
| Refresh Frequency | 3840hz | Load 128 points 2400Hz Load 128 points 1920Hz (preferred) | Load 64 points at 2880Hz Load 128 points at 1440 Hz | Load 64 points at 2880Hz, load 128 points at 1440Hz |
| Brightness | 256 levels manual/automatic | 256 levels manual/automatic | 256 levels manual/automatic | 256 levels manual/automatic |
| Service Life | 100000hours | 100000hours | 100000hours | 100000hours |
Case

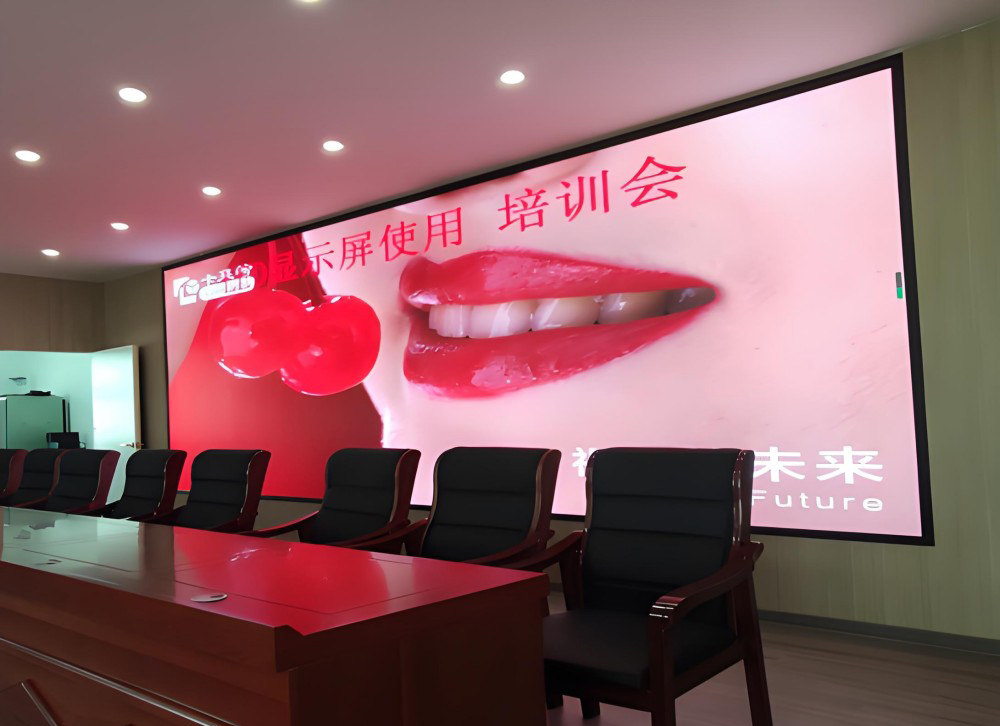

Ganzhou. Longnan City Education Bureau P2.0 full color 23 square meters

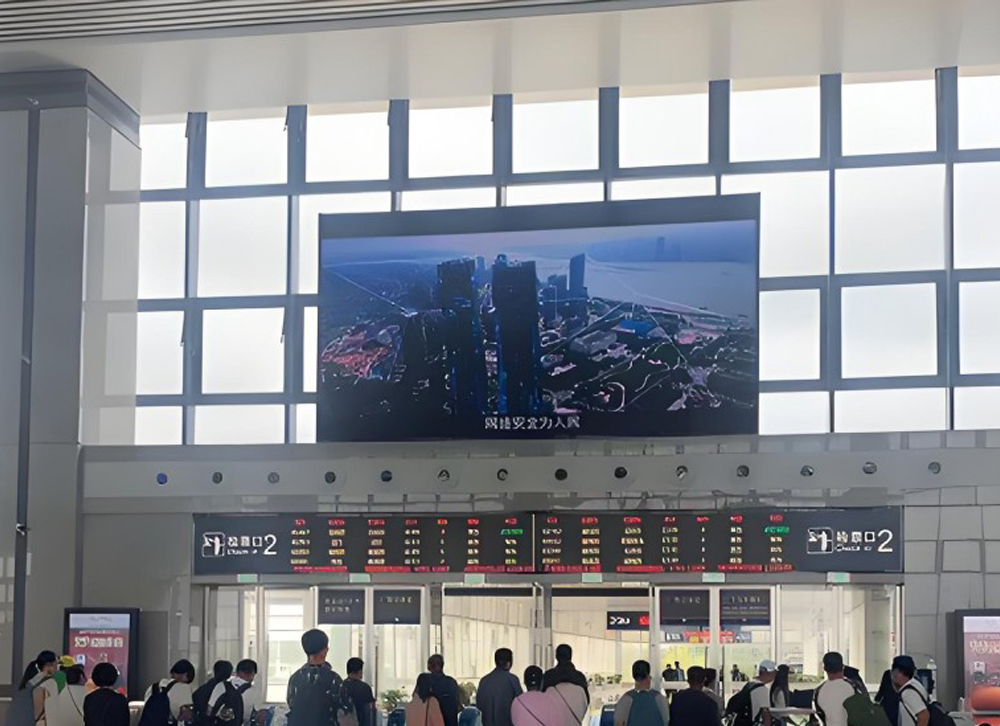

Ji'an Station indoor P4 full color

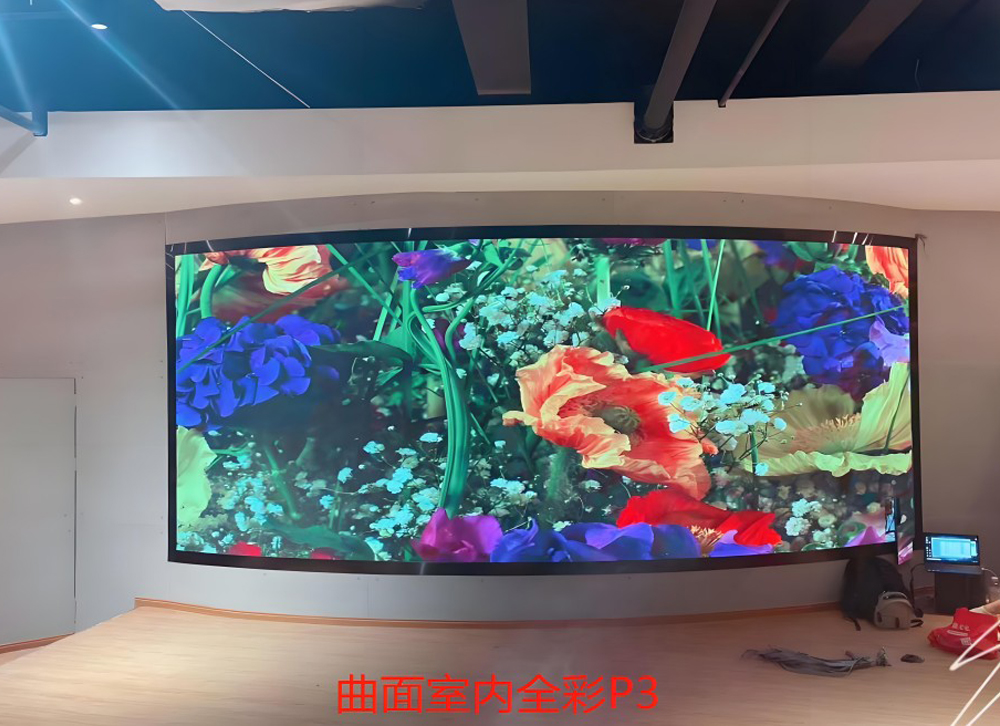

Jiangxi Art School curved P3 full color

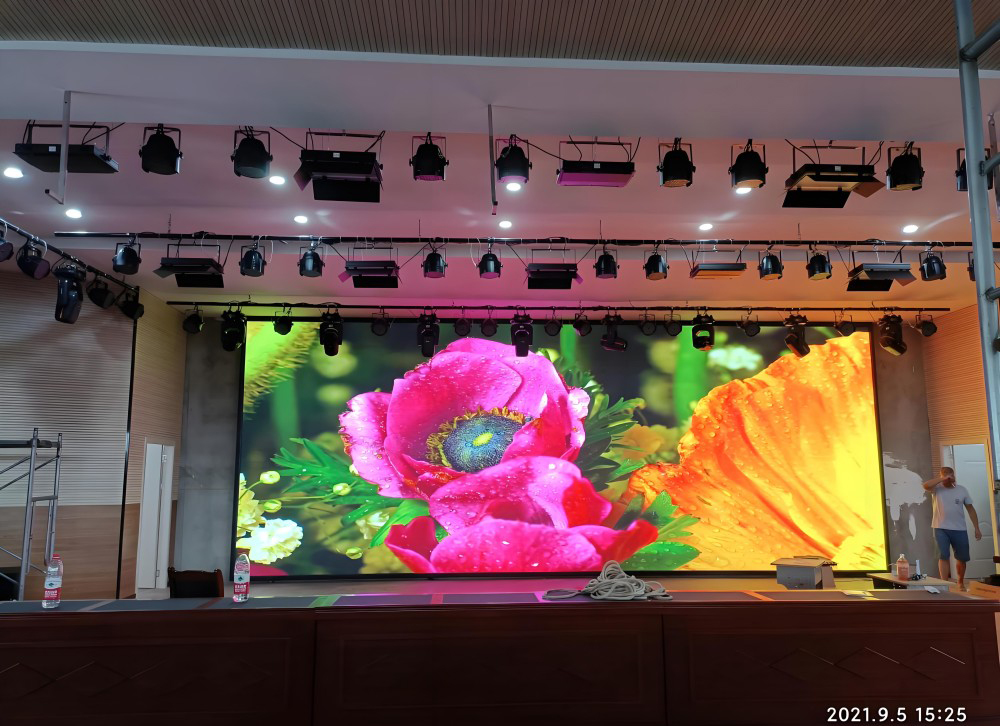

Jiujiang Yongxiu Foreign Languages School P2.5

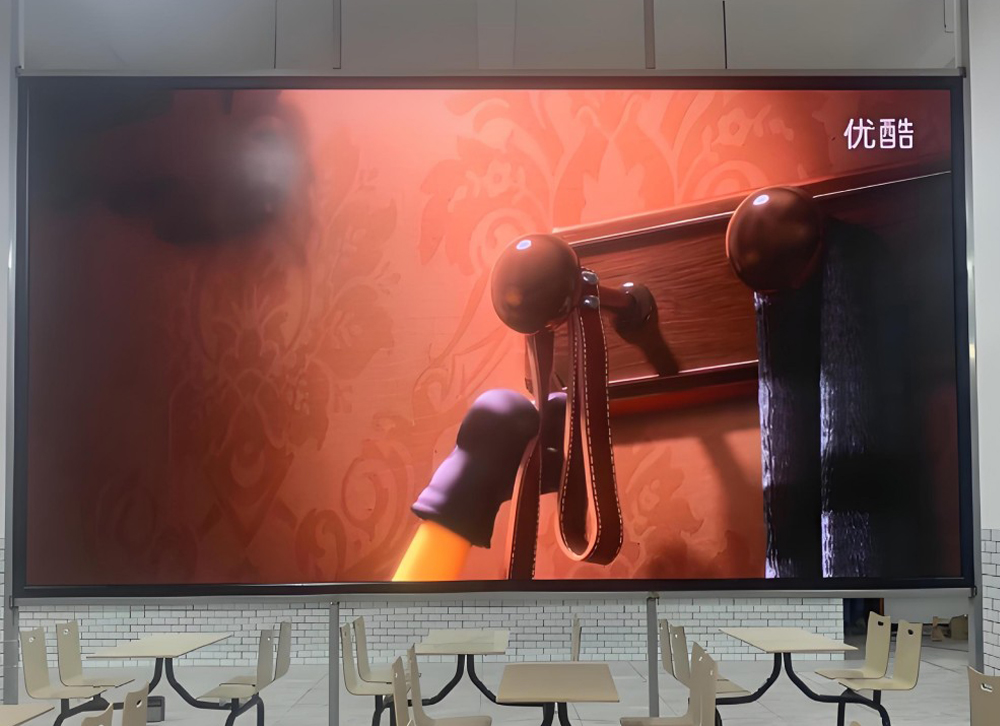

Indoor full-color P3 of a school in Xinjian District, Nanchang City

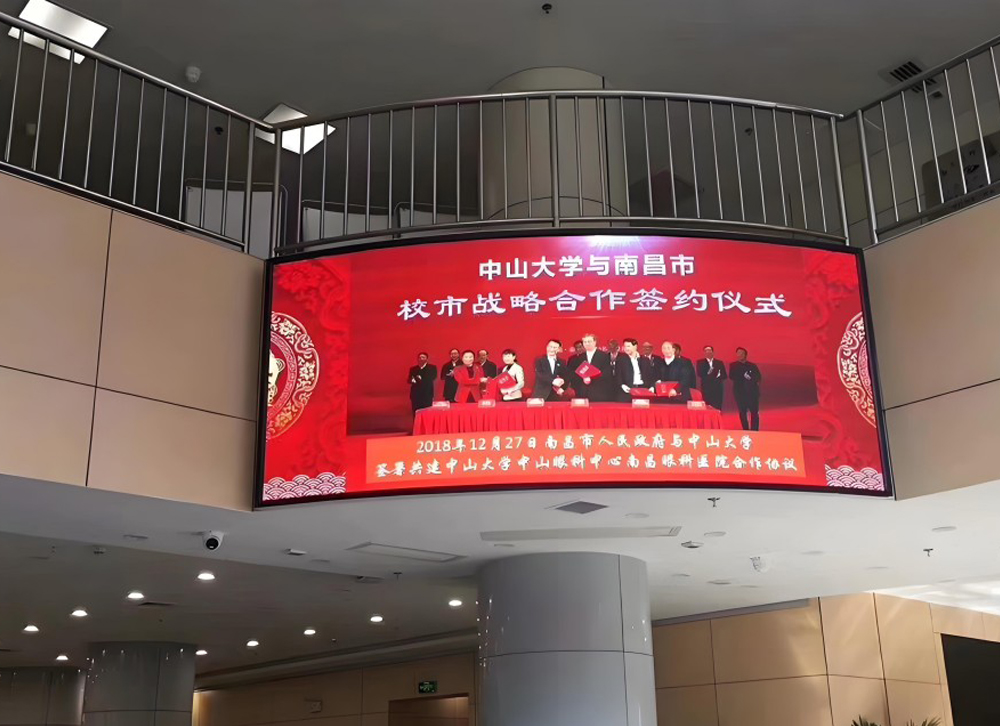

Nanchang Eye Hospital P2.5 curved screen
